Applicable industries

This series of radiographic foreign body detectors are mainly designed for bottled and canned products in the food, pharmaceutical and chemical industries. They can effectively detect metal foreign bodies, glass, ceramics, hard rubber, resin, bones, shells, stones and other foreign bodies.
It is not affected by packaging such as temperature, humidity, salt or iron cover, and has the characteristics of high precision and high reliability.


Product Features

1. No matter how complex the product is, it can also be set through the automatic learning process, and the operation is simple.

2. The unique smart eye algorithm platform adopts the dynamic feature recognition method to automatically select the algorithm parameters and obtain the appropriate sensitivity.

3. The self-learning process only needs 6-10 images, and the algorithm model training can be completed after waiting for about 20 seconds.

4. The server-level Linux system fundamentally guarantees equipment stability and computer virus immunity.

5. The fully sealed design is adopted to deal with the humid environment, the double-layer thermal cycle is adopted to deal with the high temperature environment, and the anti-condensation design is adopted to deal with the temperature difference environment.

6. All purchased parts are high-end accessories to ensure stable operation in harsh environments.

7. The protection level of the equipment detection channel is IP66, which can be washed directly.

8. The X-ray leakage meets the US FDA standard, and the outside of the equipment is less than 1uSv/h.

9. Modular design, customers do not need to re-purchase the host if the production line is upgraded.

10. It only takes a few seconds to disassemble the belt, and it is extremely convenient to disassemble and wash on site.

11. Product configuration and inspection pictures can be automatically saved and exported for analysis.

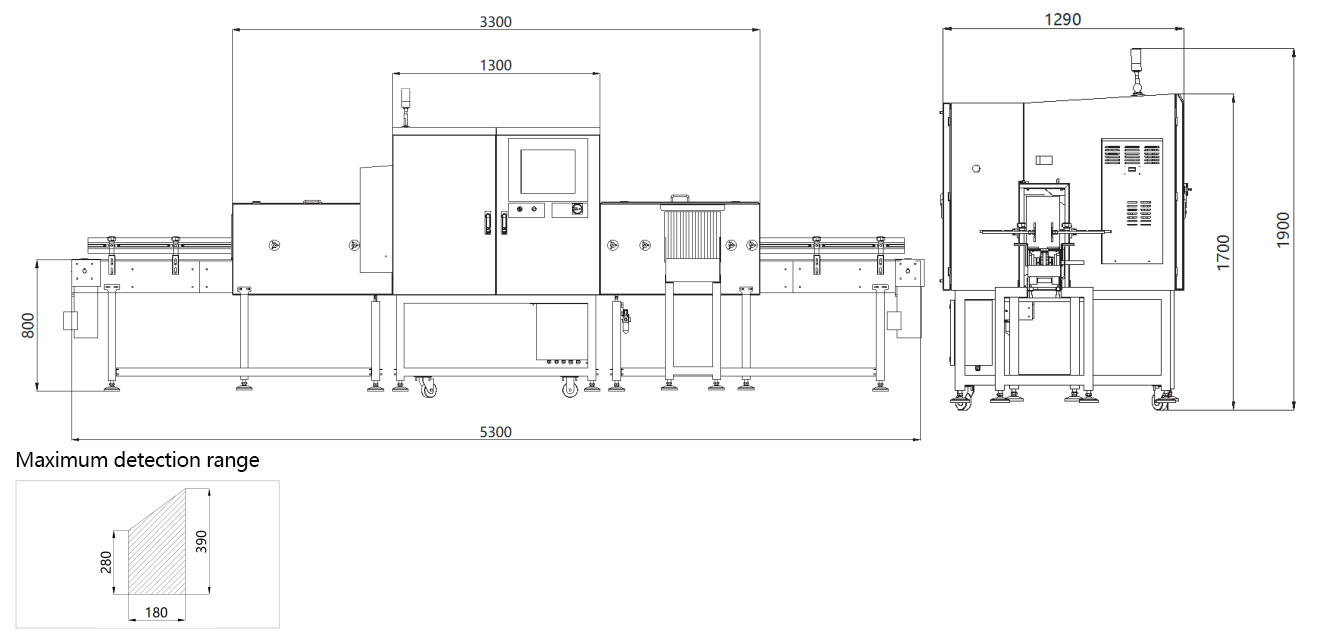

Technical Data Sheet
